  • Cordierite DPF Substrate
  • diesel particulate filters
  • Product description: Cordierite DPF Substrate,diesel particulate filters,DPF,FAP
  • INQUIRY

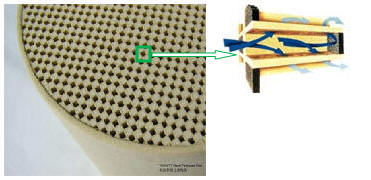

Deferry ®'s Cordierite Diesel Particulate Filters (DPFs) are designed to reduce emissions of particulate matter (PM) from diesel engines, It’s an economic porous wall flow type ceramic filter, and it’s available

for diesel particulate mater removal from the diesel engine’s exhaust.

Our cordierite DPFs is made from modified cordierite ( 2MgO-Al2O3-5SiO2 )material. Current our full series has both 100 and 200 CPSI option and size is from 1.0 liters to 44 liters.


Our Product Highlights:

1. High filtration efficiency:90%

2. Low coefficient of thermal expansion (CTE)

3. Low thermal shock resistance

4. Low back pressure

5. Outstanding durability

6. Low pressure drop

Main Applications:

1).On-Road Passenger/Medium/Heavy-Duty Vehicles 2). Stationary Engines

3).Power Generation         4).Dust Control                         5).Mining Equipment

6).Construction                 7).Marine                                  8).Material Handling

9).Diesel Locomotive


Specification for DEFERRY®'s Cordierite Diesel Particulate Filters


Shape

Dimension (mm)

Volume (Liter)

Round

φ93×153

1.0394

φ127×152.4

1.9308

φ144×150

2.4432

φ144×152.4

2.4823

φ150×150

2.6511

φ144×254

4.1372

φ190×200

5.6713

φ190×203

5.7556

φ228×305

12.4542

φ240×100

4.5245

φ240×240

10.8588

φ240×305

13.7997

φ260×305

16.1954

φ267×305

17.0792

Φ286×267

17.1550

φ286×305

19.5965

φ286×355

22.8098

φ286×381

24.4763

Φ305×305

22.287

Φ305×381

27.840

Φ381×381

43.438

Oval

188×103×145

2.2055

207×101×200

3.282

Racetrack

374×270×317

27.0537
